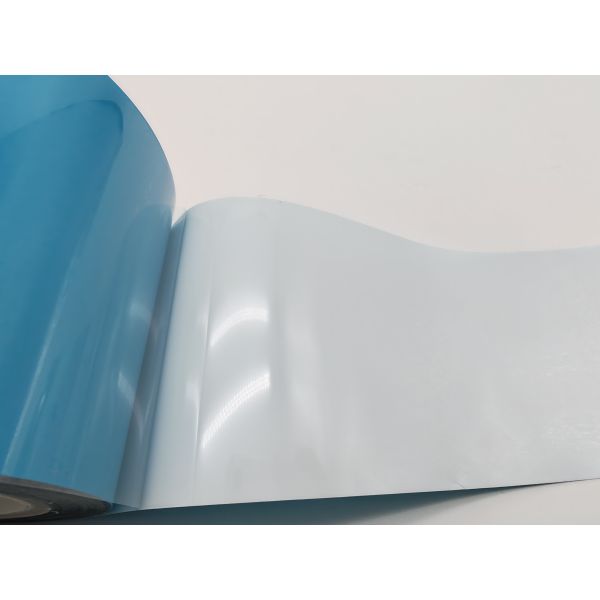

Blue Double Sided PET Tape
Description
DTT10WBL2 is an ultra-thin double-sided acrylic tape with white ink printed PET substrate. It offers white error-proofing, strong adhesion, soft conformability, and -20℃~100℃ temperature resistance, ideal for electronic component bonding.
Applications
Bonding metal and plastic components in electronic devices
Internal fixation of precision electronic parts
White error-proofing labeling for electronic assemblies
Adhesion of thin-film components in consumer electronics
Temporary bonding for electronic component processing
High-precision positioning of small electronic modules
Physical Parameters
| Item |
Specification |
Standard |
| Active Layer Thickness |
10-13±1μm |
GB/T7125-2014 |
| Adhesive Thickness (Side A) |
4.5±1μm |
GB/T7125-2014 |
| Ink Coating Thickness |
1±0.1μm |
GB/T7125-2014 |
| Substrate Thickness |
2±0.2μm |
GB/T7125-2014 |
| Adhesive Thickness (Side B) |
4.5±1μm |
GB/T7125-2014 |
| Adhesion Strength |
Side A ≥800g/25.4mm; Side B ≥1000g/25.4mm |
GB/T7125-2014 |
| Temperature Resistance |
-20℃~100℃ |
Oven Test |
| Structure |
Blue PET Release Film (25μm) + Acrylic Adhesive (A) + White Ink Layer + PET Release Film + Acrylic Adhesive (B) + Blue PET Release Film (36μm) |
- |
| Test Conditions |
23±1℃, 50±5%RH, steel plate, 300mm/min, 180° peel |
- |
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
FAQ
-
What is the substrate material of this double-sided tape?
It uses an ultra-thin printed white PET film as the core substrate with acrylic adhesive on both sides.
-
What is the temperature resistance range?
It can withstand temperatures from -20℃ to 100℃, suitable for general electronic environments.
3.What is the adhesion strength of each side?
Side A has adhesion strength ≥800g/25.4mm, while Side B ≥1000g/25.4mm, ensuring stable double-sided bonding.
4.Does it have error-proofing function?
Yes, the white ink layer provides clear visual error-proofing for electronic assembly.
5.Is it suitable for thin component bonding?
Yes, its ultra-thin total thickness (10-13μm) makes it ideal for bonding thin metal and plastic parts.
6.What is the release film material?
It uses blue PET release films (25μm and 36μm) for easy peeling and protection.
